Description
Ref.:	77 01 201 775
Huari No.:	HR1469- 1

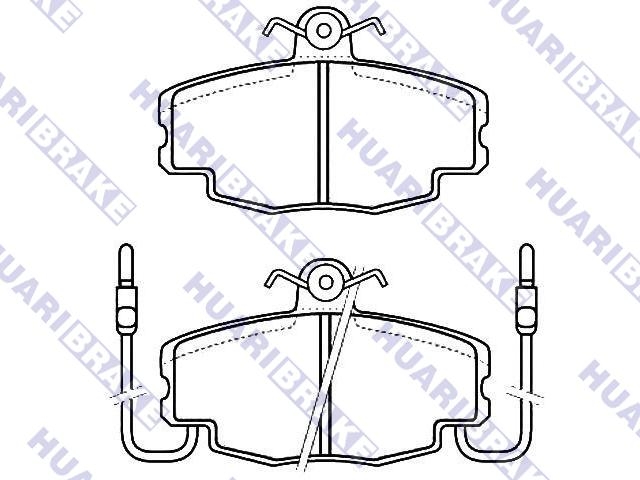

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : GRL Width : 100 mm Height : 63.5 mm Thickness : 18.2 mm

Model	Engine			Type	CYL	year
RENAULT 21 (B48_)					9/89 - 1/94
21 (B48_) 1.7 (B48E)	F3N 722	1721	90	Hatchback	4	9/89 - 6/94
21 (B48_) 1.7 (B48F)	F3N 726	1721	73	Hatchback	4	9/89 - 0/92
21 (B48_) 1.9 D (B48H, B48I)	F8Q 710	1870	64	Hatchback	4	9/89 - 1/94
RENAULT 21 Estate (K48_)					3/86 - 8/94
21 Estate (K48_) 1.7 (K/S481)	F2N 712	1721	75	Estate	4	6/86 - 3/93
21 Estate (K48_) 1.7 (K/S482)	F2N 710	1721	88	Estate	4	0/86 - 2/88
21 Estate (K48_) 1.7 (K48E)	F3N 722	1721	94	Estate	4	6/86 - 2/89
21 Estate (K48_) 1.7 (K48E)	F3N 722	1721	90	Estate	4	0/89 - 2/93
21 Estate (K48_) 1.7 (K48M)	F2N 750	1721	73	Estate	4	6/86 - 2/89
21 Estate (K48_) 1.7 (K48N)	F2N 752	1721	87	Estate	4	6/87 - 4/89
21 Estate (K48_) 1.9 D	F8Q 710	1870	64	Estate	4	3/86 - 8/94
RENAULT 21 Saloon (L48_)					8/89 - 0/93
21 Saloon (L48_) 1.7 (L481)	F2N 712	1721	75	Saloon	4	3/86 - 2/87
21 Saloon (L48_) 1.7 (L482)	F2N 710	1721	88	Saloon	4	3/86 - 3/93
21 Saloon (L48_) 1.7 (L48E)	F3N 722	1721	94	Saloon	4	3/86 - 2/94
21 Saloon (L48_) 1.7 (L48E)	F3N 722	1721	90	Saloon	4	9/89 - 2/94
21 Saloon (L48_) 1.7 (L48M, L48F)	F2N 750	1721	73	Saloon	4	7/86 - 2/94
21 Saloon (L48_) 1.7 (L48N)	F2N 752	1721	87	Saloon	4	6/87 - 4/89
21 Saloon (L48_) 1.9 D (L48H, L48I)	F8Q 710	1870	64	Saloon	4	8/89 - 0/93
RENAULT 25 (B29_)					4/84 - 2/89
25 (B29_) 2.0 (B297)	J6R 706	1995	101	Hatchback	4	4/84 - 2/92
25 (B29_) 2.0 12V	J7R 720	1995	140	Hatchback	4	6/88 - 2/93
25 (B29_) 2.0 12V (B294)	J7R 726	1995	135	Hatchback	4	6/89 - 2/92
25 (B29_) 2.1 Diesel (B296)	J8S 706	2068	63	Hatchback	4	4/84 - 5/89
25 (B29_) 2.1 Diesel (B296)	J8S 736	2068	69	Hatchback	4	6/89 - 2/92
25 (B29_) 2.1 Turbo-D FWD (B290, B29W)	J8S 708	2068	86	Hatchback	4	4/84 - 2/92
25 (B29_) 2.2 (B29)	J7T 708	2165	103	Hatchback	4	1/85 - 3/89
25 (B29_) 2.2 (B29B)	J7T 708	2165	108	Hatchback	4	9/86 - 2/92
25 (B29_) 2.2 (B29E)	J7T 706	2165	121	Hatchback	4	4/84 - 2/89
25 (B29_) 2.2 (B29E)	J7T 730	2165	124	Hatchback	4	4/84 - 2/89

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
